ろう付けされた二重切口回転式ファイル炭化物は一定50000RPMをぎざぎざを付ける

100部分
MOQ
ろう付けされた二重切口回転式ファイル炭化物は一定50000RPMをぎざぎざを付ける
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
材料: 炭化タングステン
溶接: 銀製の溶接
固体/ろう付けされる: ろう付けされる
輸送: 海/空気は/表現します
サイズ: 標準サイズ
形: 種類の形
セット: 8pcs場合/セット
証明書: ISO9001:2008年
ハイライト:

回転式ファイル炭化物はセットをぎざぎざを付ける

,

銀製の溶接の炭化物のぎざぎざセット

,

50000RPM円柱炭化物のぎざぎざセット

基本情報
起源の場所: 四川、中国
ブランド名: KTS
証明: ISO9001:2008
モデル番号: A/B/C/D/E/F/G/H/J/K/L/M
お支払配送条件
パッケージの詳細: プラスチック ケース
受渡し時間: 7-30日
支払条件: T/T、ウェスタン・ユニオン
供給の能力: 1ヶ月あたりの250000の部分/部分
製品の説明

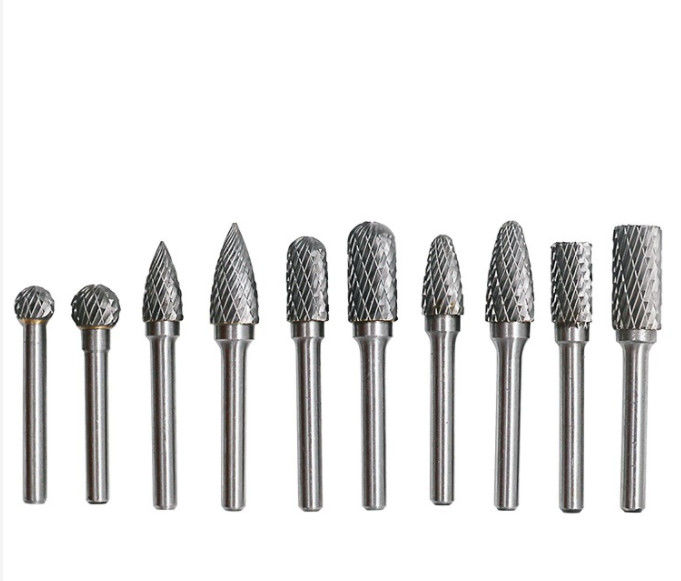

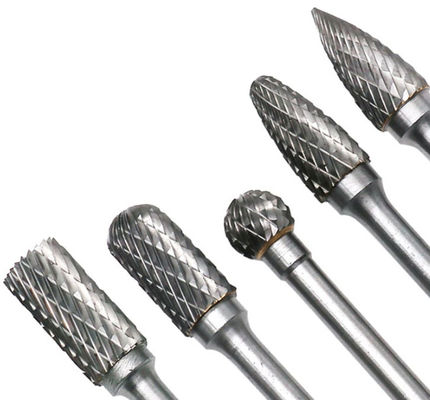

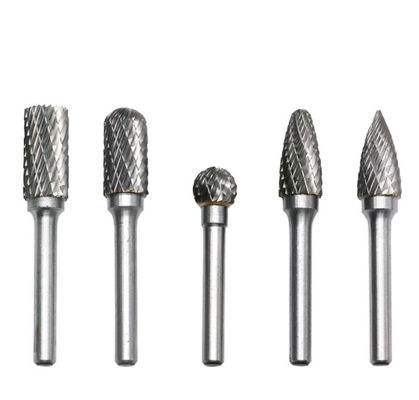

Hand Tools Double Cut Tungsten Carbide Rotary Files Carbide Burrs Set Tungsten Carbide Bur





Product Description


The Rapid Abrasives Cylindrical Double Cut Carbide Burr is built to grind flat surfaces on metal and non-ferrous metal applications.

Build
Excellent for light to medium material removal.

This solid carbide burr is double cut with a chisel tooth cutting pattern that produces small chips instead of long, sharp slivers which help to finish the metal surfaces faster, eliminates loading and minimizes chatter to provide a smooth cutting experience.


Operation


Moving the burr over the surface gradually will help remove only the material wanted and will help prevent the burr from making divots and unsightly marks.

To extend the life of the burr, only apply enough pressure to let the burr do the work. This eliminates unnecessary wear to the burr.



Technical date



S.N. MATERIAL
1a Steel
1b Hard steels
2 Stainless steel
3 Cast iron
4 Titanium
5 Nickel
6 Copper/Copper alloys
7 Aluminum
8 Plastics
9 Cement



Guide to running speeds



mat nr.

MAX RPM

3mm/0.123"

90,000

6mm/0.250"

50,000

10mm/0.375"

40,000

12mm/0.500"

35,000

16mm/0.625'

25,000

1a 60,000-80,000 35,000-45,000 22,500-35,000 20,000-30,000 15,000-20,000
1b 60,000-80,000 30,000-45,000 19,000-30,000 15,000-22,500 12,000-18,000
2 60,000-80,000 30,000-45,000 19,000-30,000 15,000-22,500 12,000-18,000
3 45,000-80,000 22,500-45,000 15,000-35,000 11,000-30,000 9,000-20,000
4 60,000-80,000 30,000-45,000 19,000-30,000 15,000-22,500 12,000-18,000
5 60,000-80,000 30,000-45,000 19,000-30,000 15,000-22,500 12,000-18,000
6 45,000-80,000 22,500-45,000 15,000-35,000 11,000-30,000 3,000-20,000
7 30,000-80,000 15,000-45,000 10,000-35,000 7,000-30,000 6,000-20,000
8 30,000-80,000 15,000-45,000 10,000-35,000 7,000-30,000 6,000-20,000
9 60,000-80,000 30,000-45,000 19,000-30,000 15,000-22,500 12,000-18,000



Application:


It can be processed cast iron, cast steel, carbon steel, alloy steel, stainless steel, copper, aluminum and other metals, and marble, jade, bone and other non-metallic. Processing hardness up to HRA85.



Advantage:


1. 10 years professional experience.
2. 100% new material.
3. Be more durable.
4. OEM & ODM Service.
5. All payment terms supported.
6. Fast delivery time & Convenient Transportation



ろう付けされた二重切口回転式ファイル炭化物は一定50000RPMをぎざぎざを付ける 0

ろう付けされた二重切口回転式ファイル炭化物は一定50000RPMをぎざぎざを付ける 1

ろう付けされた二重切口回転式ファイル炭化物は一定50000RPMをぎざぎざを付ける 2

Packing

ろう付けされた二重切口回転式ファイル炭化物は一定50000RPMをぎざぎざを付ける 3



About us



Zigong (Chengdu) Cemented Carbide Co., Ltd. is a subsidiary of Zigong Cemented Carbide Co., Ltd., which specializes in the production of cemented carbide rotating tools and cemented carbide materials. We have two branches, one is located in Chengdu City, Sichuan Province, and the other is located in Zigong City, Sichuan Province.



Founded in 2007 in Zigong City, Sichuan Province. In China, we are an exclusive factory with production equipment from raw materials to finished tools. Including inclined wet grinding, pressing, low pressure sintering, five-axis CNC, electronic tool surface scanner, hardness tester and TRS. The main products include cemented carbide end mills / cemented carbide end mill blanks / cemented carbide tool holders and cemented carbide nozzles. We have exported to North America, Europe, Asia, etc. We helped make world-class cheap products.
